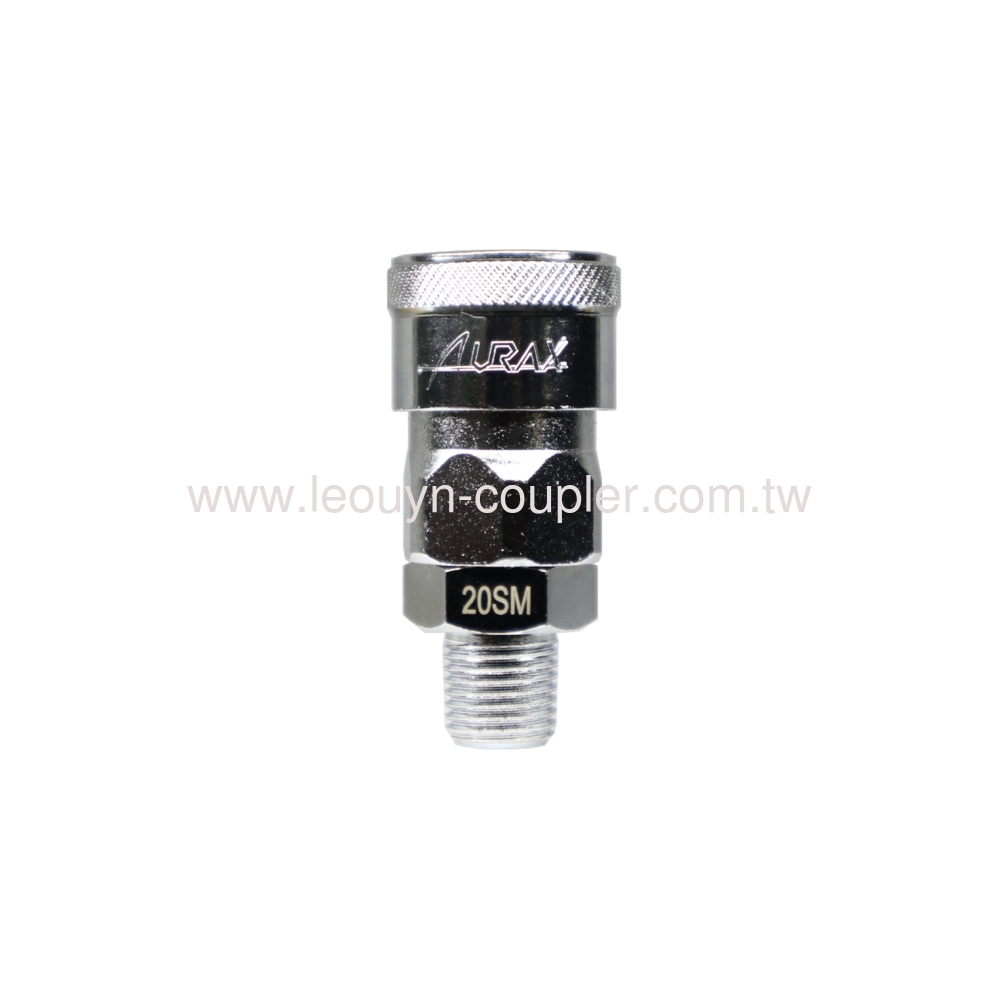

Quick coupler-Male
-Model : 20SM | 30SM | 40SM
-Two-touch opreation
-Compatible for use with Japanese style plug
-Application: For pneumatic equipment or tools
-Working pressure: 10 KG/CM2
-Max working pressure: 15 KG/CM2
-Temperature: -20~+80
-Two-touch opreation
-Compatible for use with Japanese style plug
-Application: For pneumatic equipment or tools
-Working pressure: 10 KG/CM2
-Max working pressure: 15 KG/CM2
-Temperature: -20~+80
|
型號 Model |
A | B | D | L | H |

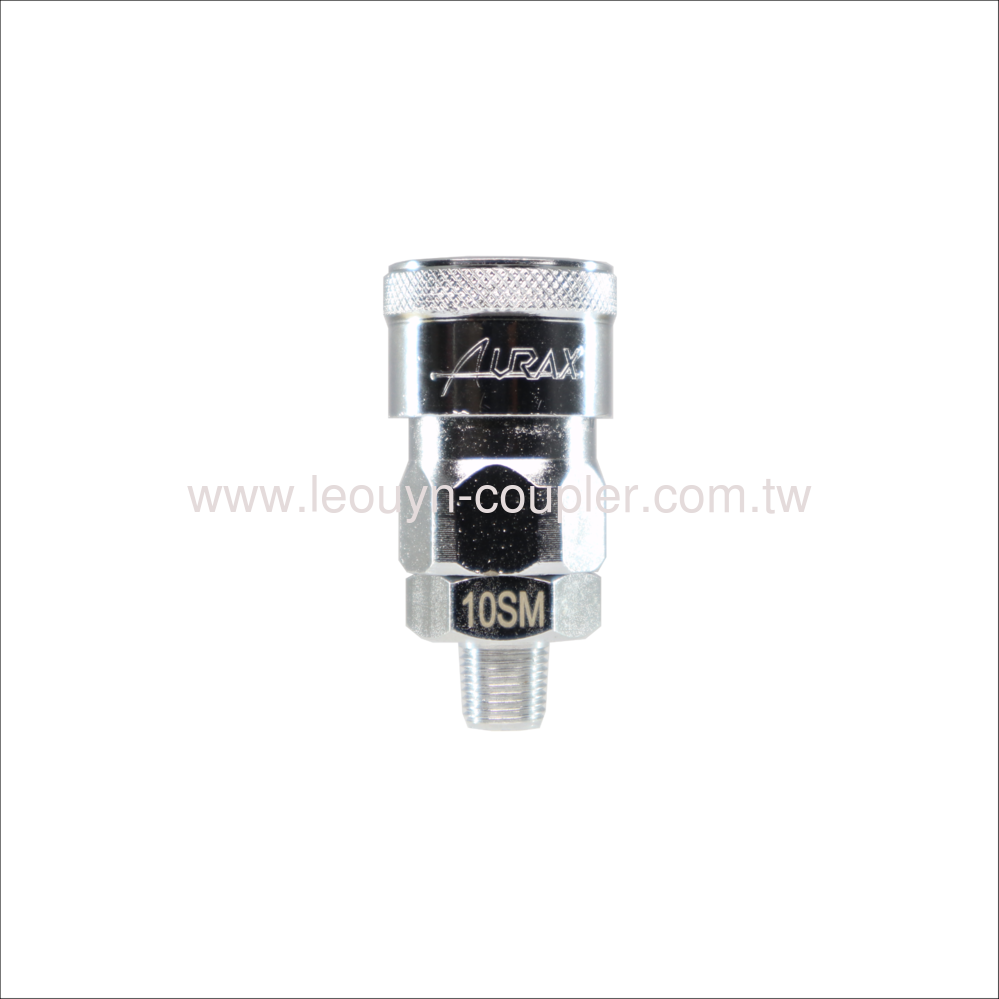

| 10SM | 1/8"PT | 5 | 26.2 | 54.5 | H19 |
| 20SM | 1/4"PT | 7 | 26.2 | 54.5 | H19 |

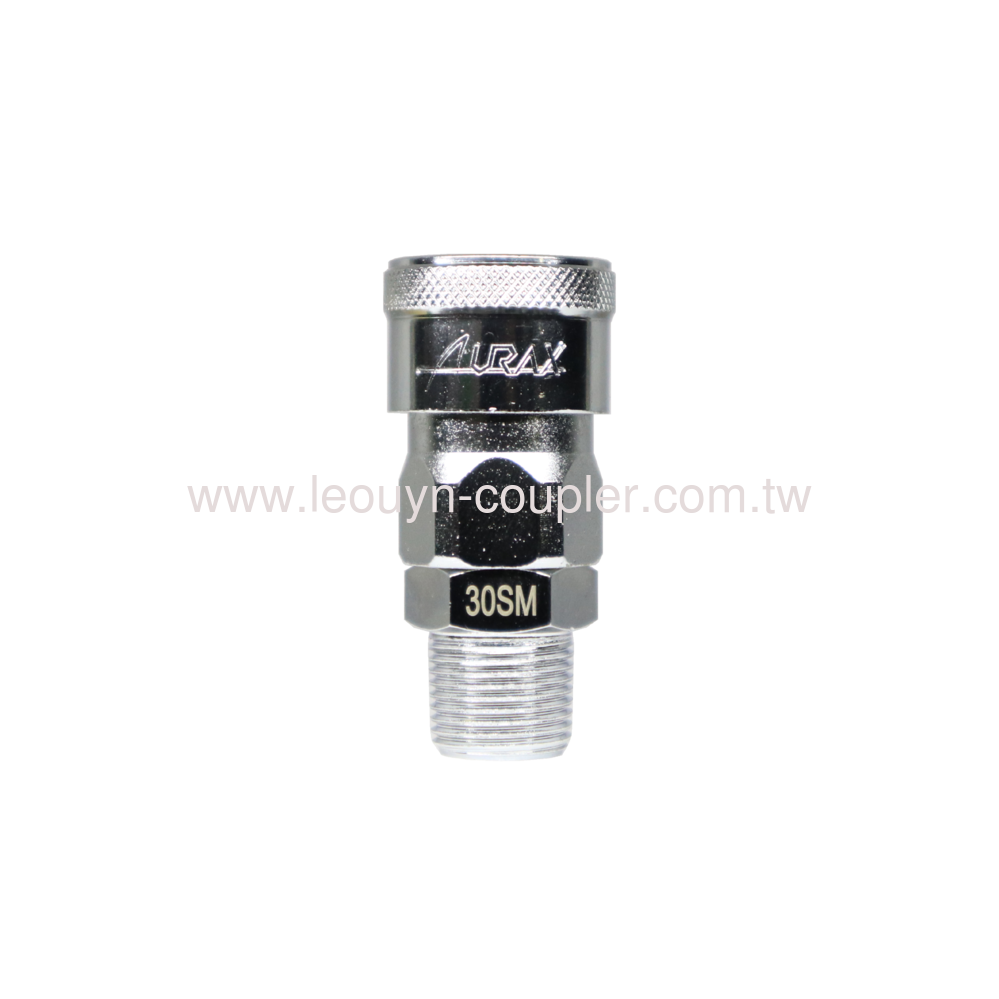

| 30SM | 3/8"PT | 8 | 26.2 | 55.5 | H21 |

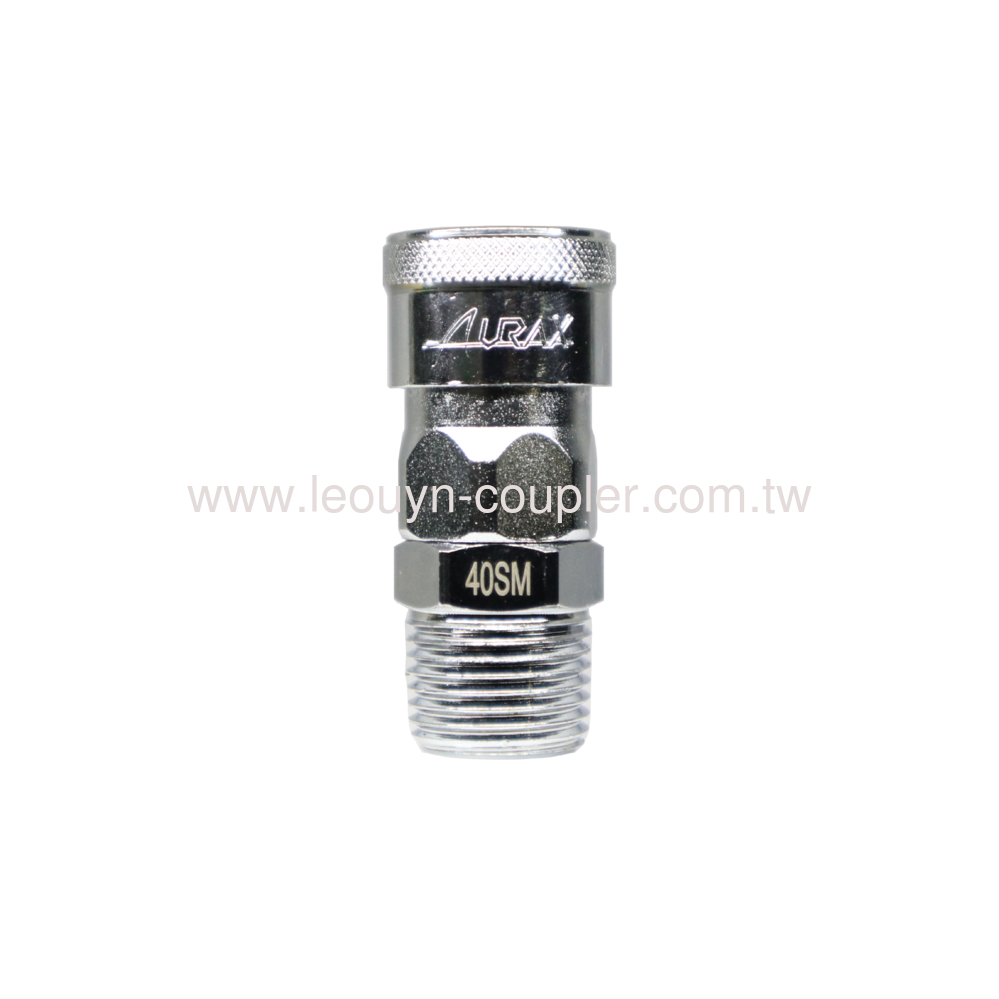

| 40SM | 1/2"PT | 12 | 26.2 | 57.5 | H24 |
| 400SM | 1/2"PT | 13 | 35.8 | 64.8 | H29 |
| 600SM | 3/4"PT | 14 | 35.8 | 68 | H29 |
| 800SM | 1"PT | 16 | 35.8 | 75 |
H35 |
